商品の詳細:
|
| 住宅資料: | ゲルなしのPC (UL 94v-0) | 接触材料: | 青銅 青銅 |
|---|---|---|---|
| 線を挿入する力: | 典型的な45N | ワイヤを引っ張る力: | 典型的な40N |
| 最大隔熱直径: | 1.65 mm | ケーブルスタイルとワイヤーの直径: | 0.32〜0.65mm (28-22 AWG) |
| ハイライト: | 25 pair fiber optic splicing module,gel-free fiber optic splice module,1.65mm diameter fiber optic connector |
||

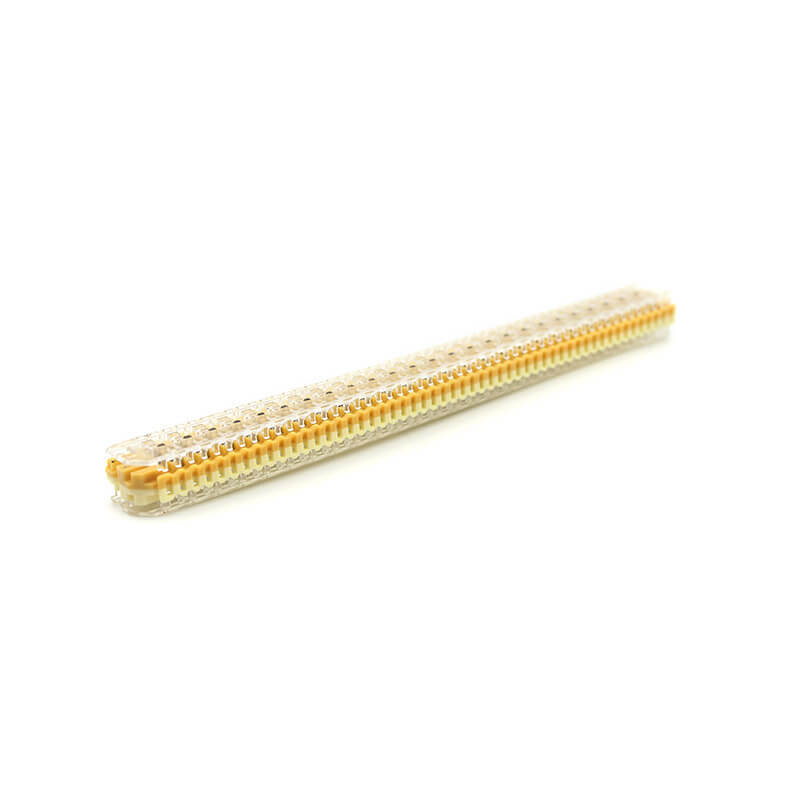

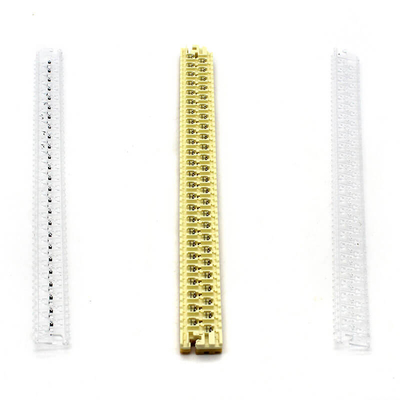

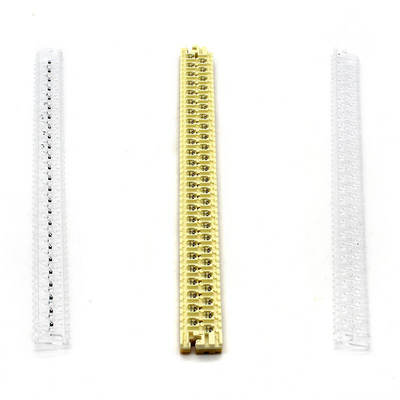

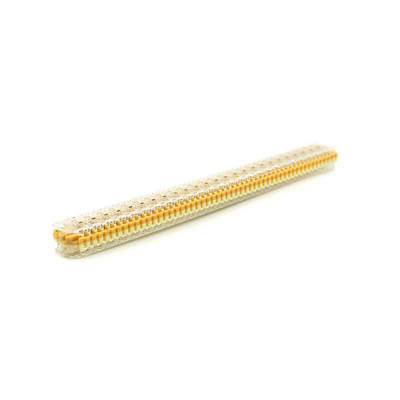

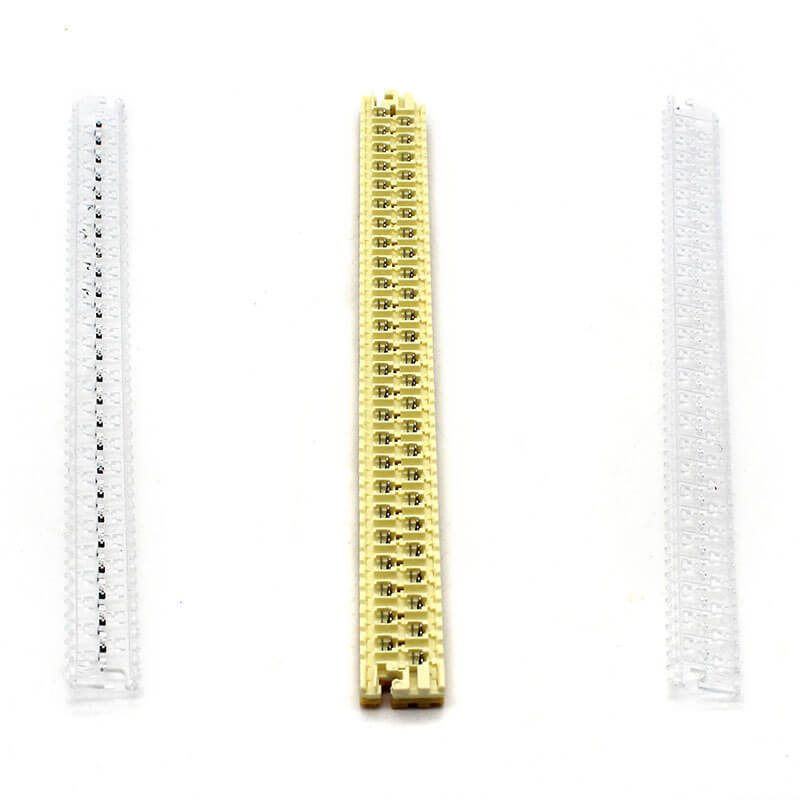

The 25-Pair Splicing Module without Gel is designed for connecting all plastic communication cables (diameter 0.32 - 0.65mm) through direct, bridge, and multiple connections. Widely used in communication circuits, it features a tuning fork type and sheet joint design for reliable connections. The clear cover module allows for easy pair identification and troubleshooting.
| Housing Material | PC (UL 94v-0) without gel | Contacts Material | Tinned Phosphor Bronze |
|---|---|---|---|
| Wire Insertion Force | 45N Typical | Wire Pull-Out Force | 40N Typical |
| Max Insulation Diameter | 1.65 mm | Cable Style and Wire Diameter | 0.32-0.65 mm (28-22 AWG) |
| Storage Temperature | -40℃～ 120℃ | Operating Temperature | -30℃～ 80℃ |
| Relative Humidity | <90% (@20℃) | Atmospheric Pressure | 70 Kpa～106 KPa |
| Insulation Resistance | R≥10000M Ohm | Contact Resistance Vary | 1m Ohm |
| Constant Current | 5KA 8/20u Sec | Surge Current | 10KA 8/20u Sec |
