IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections

IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections
IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections

大画像 :  IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections

商品の詳細:
起源の場所: 中国
ブランド名: DOWELL
お支払配送条件:
最小注文数量: 200個
受渡し時間: 7~15日
支払条件: T/T
供給の能力: 7日あたり1000pcs

IP68 96 Cores Dome Type Fiber Optic Joint Enclosure Splice Closure for Secure Cable Connections

記述
ファイバー容量: 96コア スプライス トレイの構成: 4個
ポートの数: 4個 保護等級: IP65
ハイライト:

IP68 Fiber Optic Joint Enclosure

,

96 Cores Fiber Optic Splice Closure

,

Dome Type Fiber Optic Splice Box

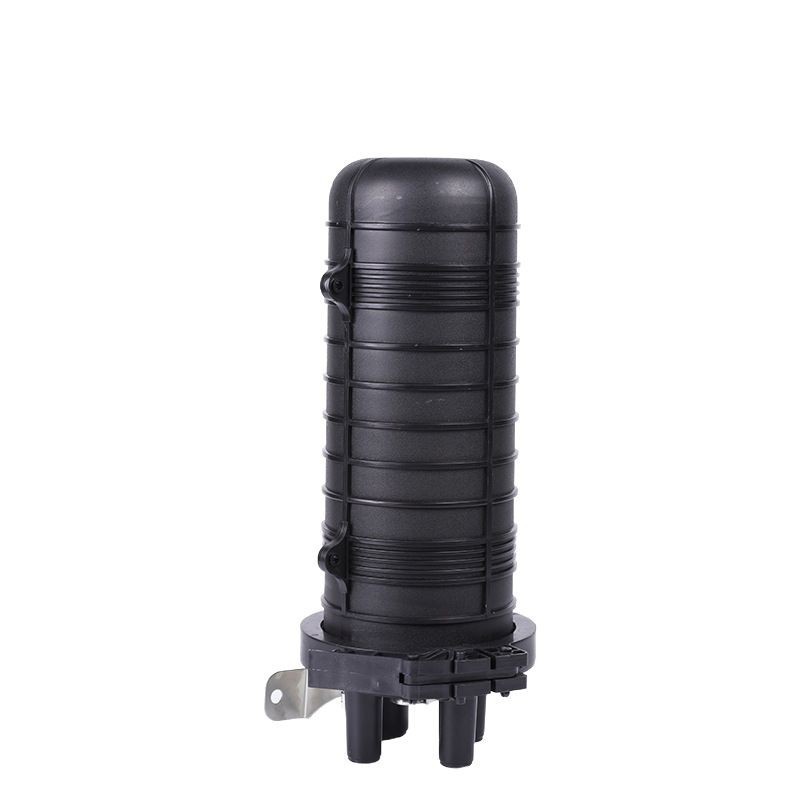

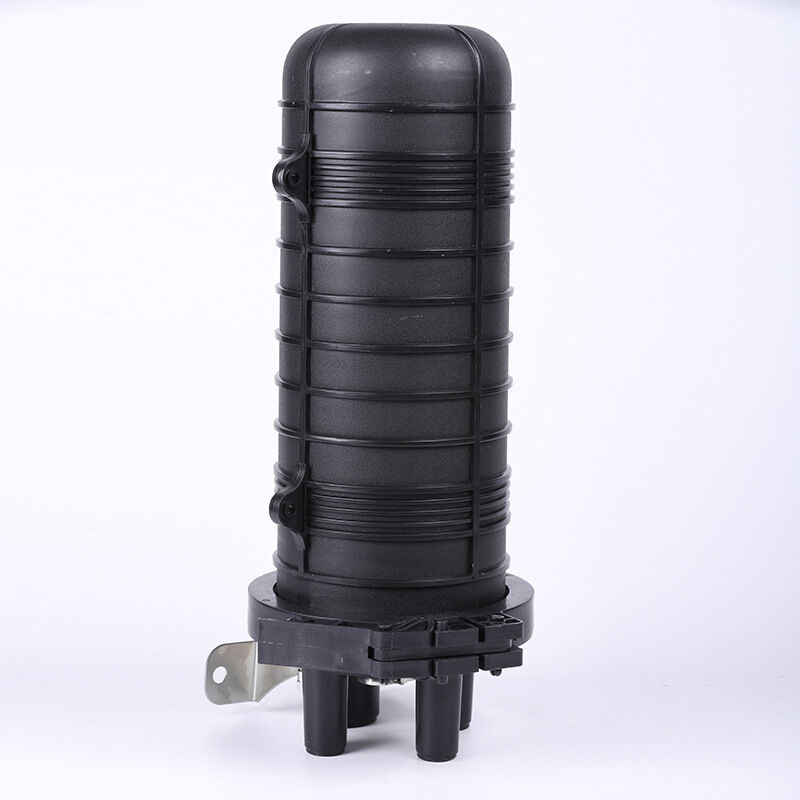

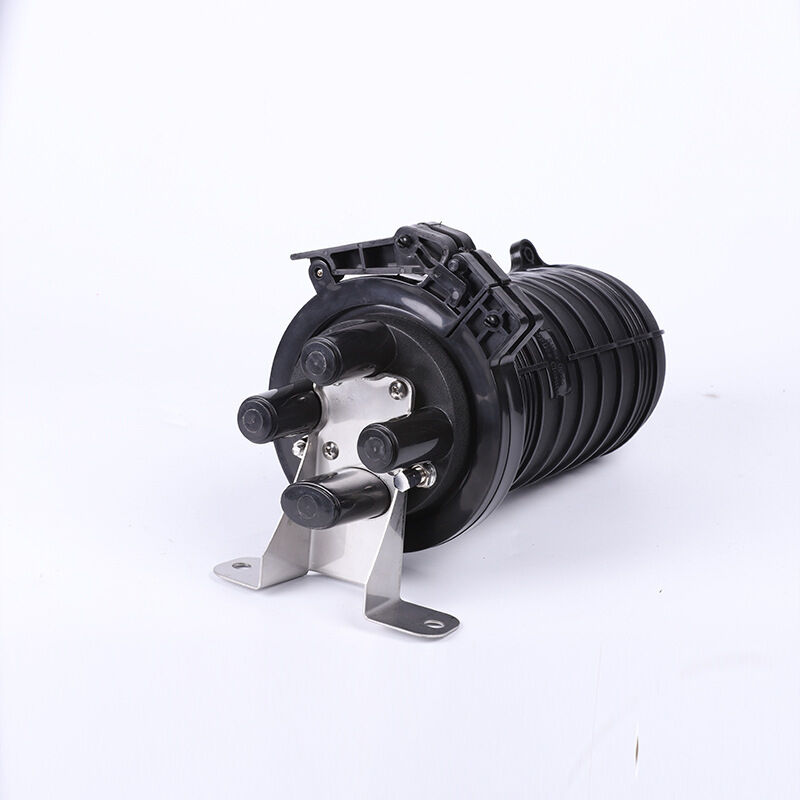

IP68 96 Cores Fiber Optic Joint Enclosure 1 In 3 Out Ports Dome Type
A fiber optic joint closure, also referred to as a fiber optic splice closure, is a specialized protective device designed for fiber optic cable connections. It serves as a secure enclosure for fiber splices, providing mechanical protection, environmental isolation, and organized fiber management in optical communication systems.
Specifications
Fiber Capacity 96 Cores
Splice Tray Configuration 4pcs
Number of Ports 4pcs
Protection Rating IP68
Temperature Range -40℃ ~ +65℃
Key Features

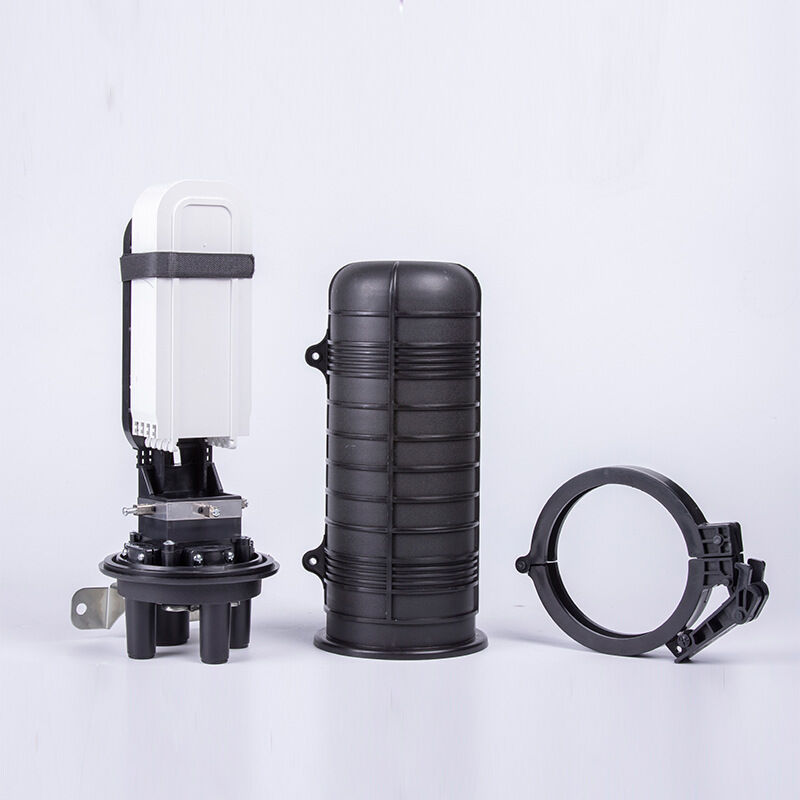

  • Outer Shell: Made of durable materials like high-density polyethylene (HDPE), polycarbonate (PC), or glass fiber-reinforced plastics (FRP), providing excellent mechanical strength and corrosion resistance.
  • Splice Tray: The core internal component that holds fiber splices and organizes pigtails or fiber segments. It can be stacked to expand the fiber capacity of the closure.
  • Sealing Assembly: Includes rubber seals, heat-shrinkable sleeves, and sealing tapes, ensuring the tightness of cable entry ports and the closure lid.
  • Fixing Parts: Such as cable clamps and tension-resistant components, which fix the optical cable to prevent it from being pulled loose and damaging the splices.
Applications
  • Telecommunication backbone networks and access networks
  • Fiber-to-the-home (FTTx) and fiber-to-the-building (FTTB) projects
  • Cable television (CATV) signal transmission networks
  • Industrial monitoring and data communication systems
  • Long-distance optical fiber transmission lines across cities or regions
