12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection
12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection
12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

大画像 :  12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

商品の詳細:
起源の場所: 中国
ブランド名: DOWELL
お支払配送条件:
最小注文数量: 100個
受渡し時間: 7～15日
支払条件: T/T
供給の能力: 7日あたり1000pcs
連絡先

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

記述
温度: -40℃〜+60℃ 湿度: 95%以下(40℃にて)
空気圧: 70kPa～106kPa 材料: PP/ABS/金属
ハイライト:

12 Cores Fiber Optic Closure

,

1 In 3 Out Fiber Optic Splice Joint Closure

,

Vertical Heat-Shrink Dome Fiber Optic Closure

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure

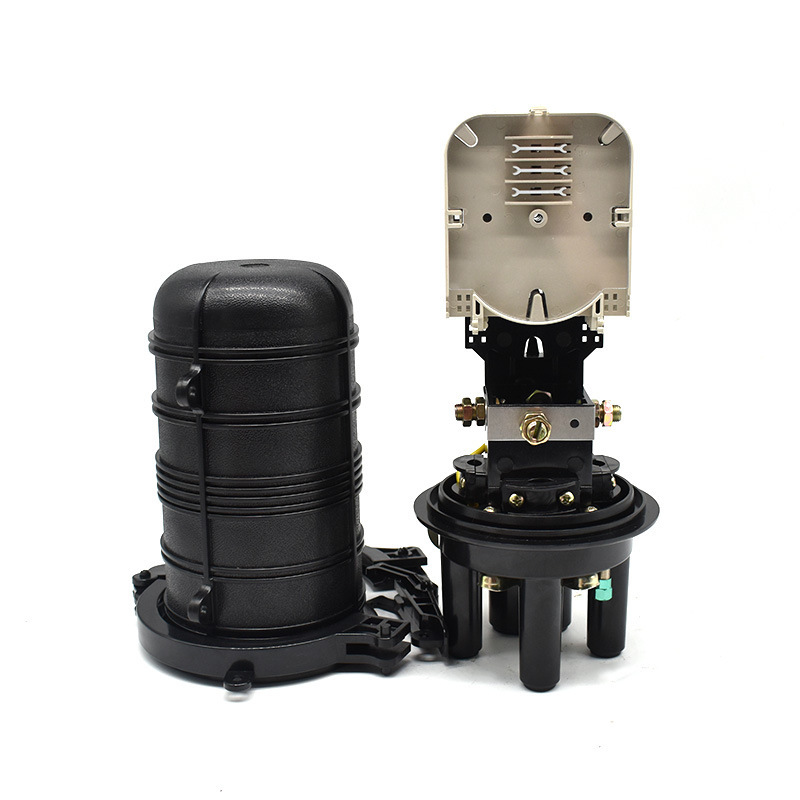

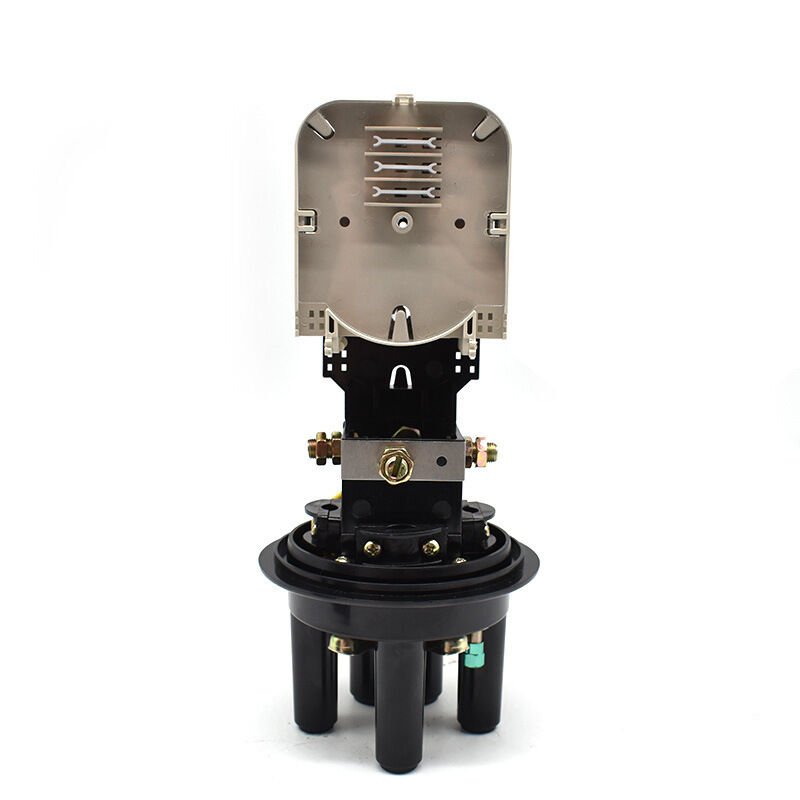

Fiber Optic Splice Joint Closure Dome Types are designed for distributing, splicing, and storing outdoor optical cables entering and exiting from the closure ends. Available in direct connection and splitting connection configurations, these closures are suitable for overhead, pipeline manwell, and embedded installations. Compared to terminal boxes, closures require stricter sealing standards and include sealing rings and air valves for enhanced protection.
Specifications
Temperature -40℃ to +60℃
Humidity ≤95% (at 40℃)
Air Pressure 70kPa to 106kPa
Key Features
  • High-quality engineering plastic casing with excellent anti-corrosion, anti-aging properties, and smooth appearance
  • Reliable mechanical structure resistant to harsh environments and extreme climate changes with IP68 protection rating
  • Compatible with both ribbon type optical cables and common optical cables
  • Booklet-style splice trays with adequate curvature radius (40mm minimum) and fiber winding space
  • Compact design with high capacity and convenient maintenance capabilities
  • Elastic rubber seal rings providing superior sealing and moisture-proof performance
  • Reusable casing with easy operation requiring no special tools, includes air valve for seal verification

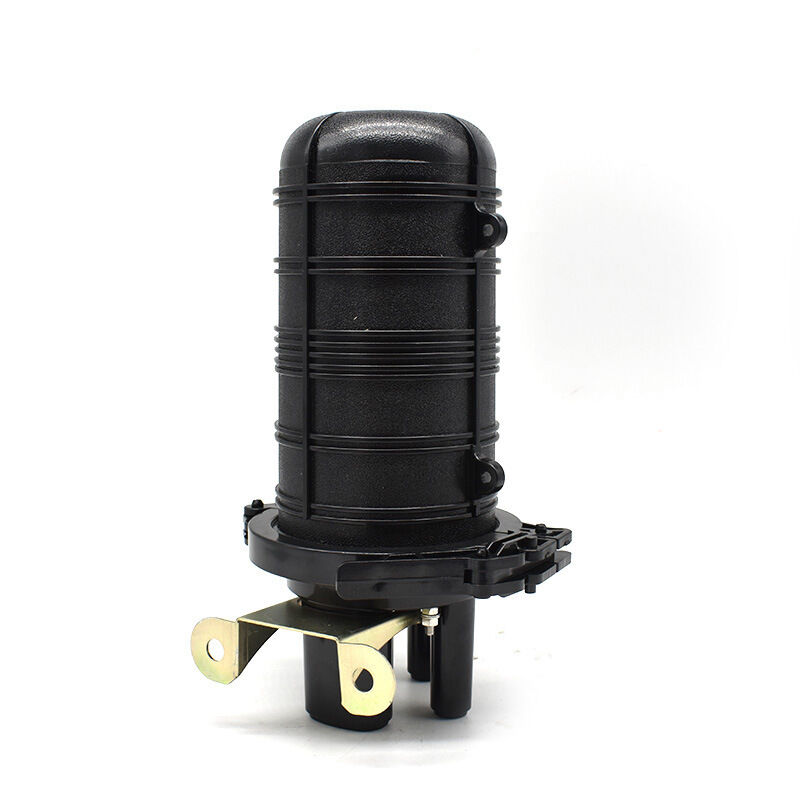

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 0
Applications
  • Provides comprehensive protection for fiber splice points against environmental factors, particularly water permeation
  • Suitable for aerial installations, cable ducts, direct burial, and pedestal mounting

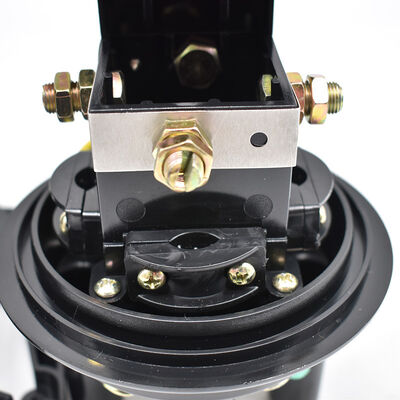

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 1
