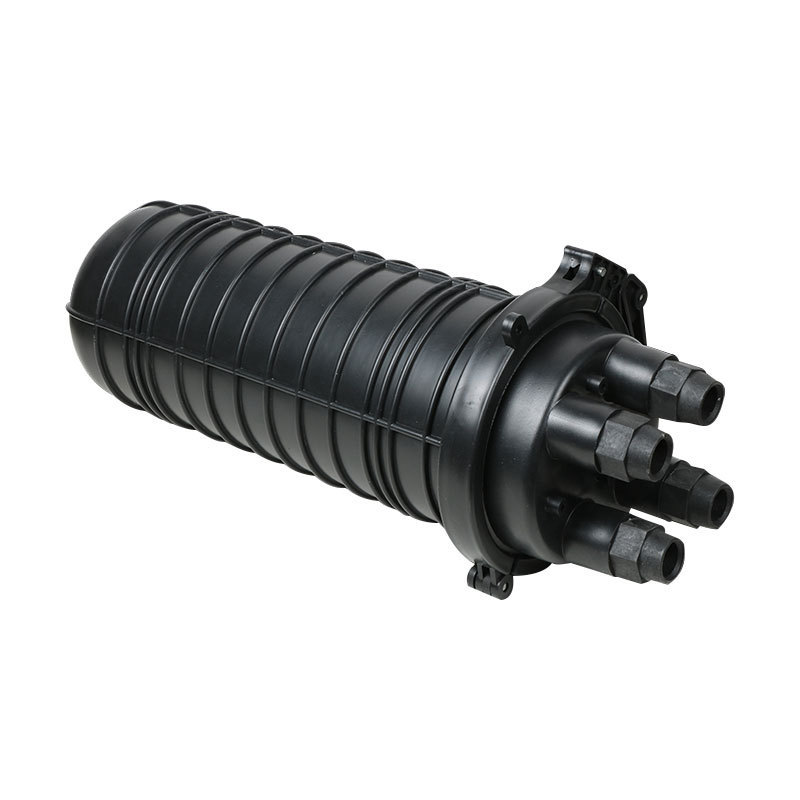

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection
24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection 24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection 24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

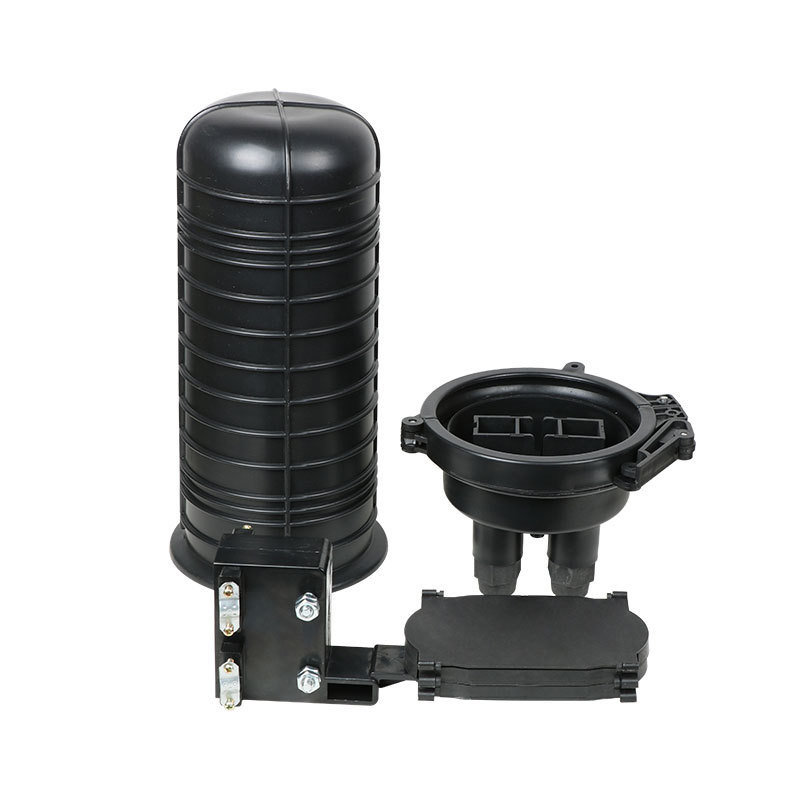

大画像 :  24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

商品の詳細:
起源の場所: 中国
ブランド名: DOWELL
お支払配送条件:
最小注文数量: 200pcs
受渡し時間: 7～15日
支払条件: T/T
供給の能力: 10日あたり1000pcs
連絡先

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

記述
ハイライト:

24 cores Fiber Optic Splice Closure

,

2 In 2 Out Dome Fiber Closure

,

IP68 Fiber Optic Enclosure

Communications 24 cores Dome Fiber Optic Splice Closures 2 In 2 Out
Fiber optic enclosure is a protective housing designed to securely store and organize fiber optic cables, splices, connectors, and passive components. It is a critical part of any fiber optic network infrastructure, serving as the central point for managing, splicing, distributing, and protecting fragile fiber connections. Think of it as the "junction box" or "patch panel" for a fiber optic system.
Specification
Entry ports number 2 In 2 Out
Splice Capacity 24 Cores
Environmental IP20, UL 94 V-0
IP grade 68
Sealing Gel-sealed entry ports
Temp Range -40°C to +70°C
Features
  • Outer Housing / Shell: The main protective body.
  • Baseplate / Tray: The internal frame where all components are mounted.
  • Splice Tray: A modular tray that holds and protects individual fiber splices. Multiple trays can often be stacked.
  • Adapter Panels / Plates: Hold the fiber optic adapters (e.g., LC, SC, ST) that connect two patch cords.
  • Fiber Management System: Includes spools, bend-radius limiters, and cable ties to safely route and secure fibers without violating their minimum bend radius.

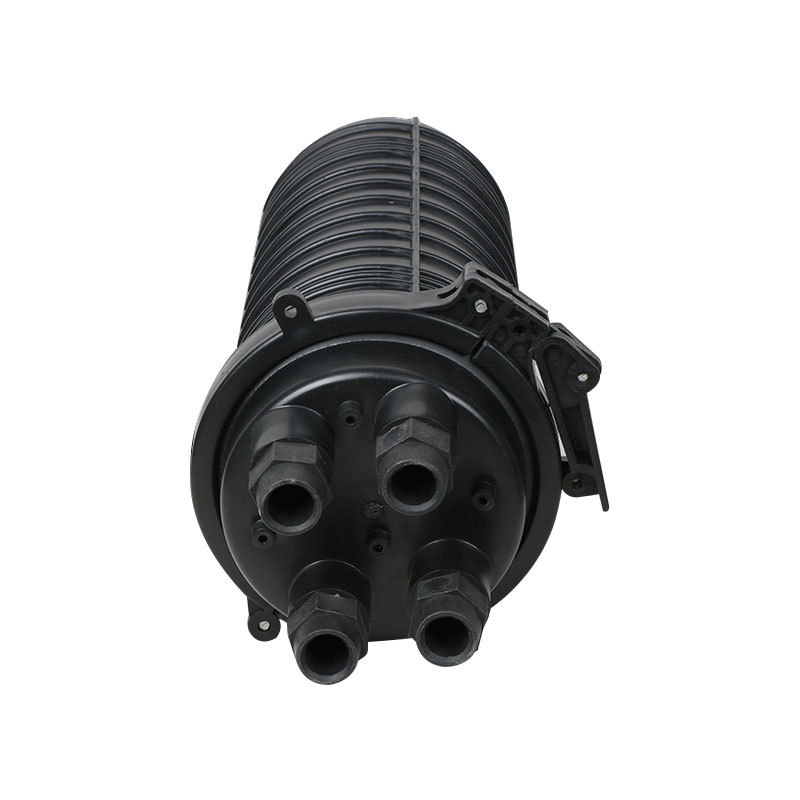

  • Cable Ports & Seals: Entry and exit points for cables, with grommets or seals to maintain environmental integrity.
  • Grounding Lug: A terminal for connecting a grounding wire for electrical safety (especially important for metal enclosures and cables with metal strength members).
Size
24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection 0
Parameter
Working Temperature: -40°C to +65°C
Atmospheric Pressure: 62~106Kpa
Axial Tension: >1000N/1min
Flatten Resistance: 2000N/100 mm (1min)
Insulation resistance: >2*10⁴MΩ
Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
Durability: 25 years
