FC UPC Square Fiber Optic Adapter, <0.2dB Insertion Loss

基本情報
起源の場所: 中国
ブランド名: DOWELL
モデル番号: dw-fus-s
最小注文数量: 100pcs
受渡し時間: 7〜15日
支払条件: T/T
供給の能力: 3日で100個
詳細情報
コネクタタイプ: FC、SC、ST、LC、MU 挿入損失: &lt;0.2dB
返品損失: UPC&gt; 50dB APC&gt; 60dB コネクタ情報: SM、MM
ハイライト:

FC UPC fiber optic adapter

,

square fiber optic adapter

,

low insertion loss fiber adapter


製品の説明

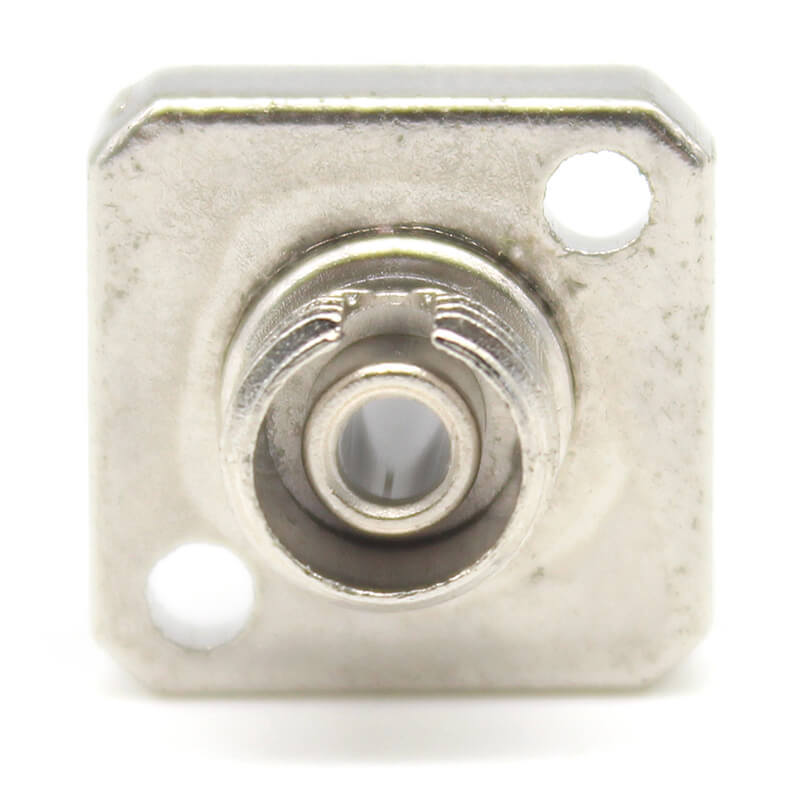

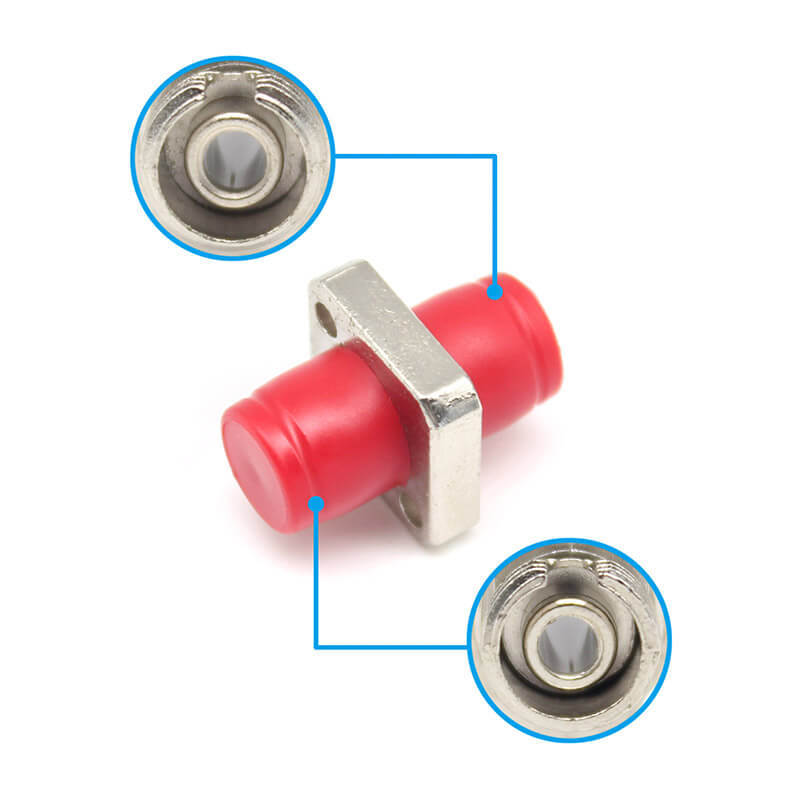

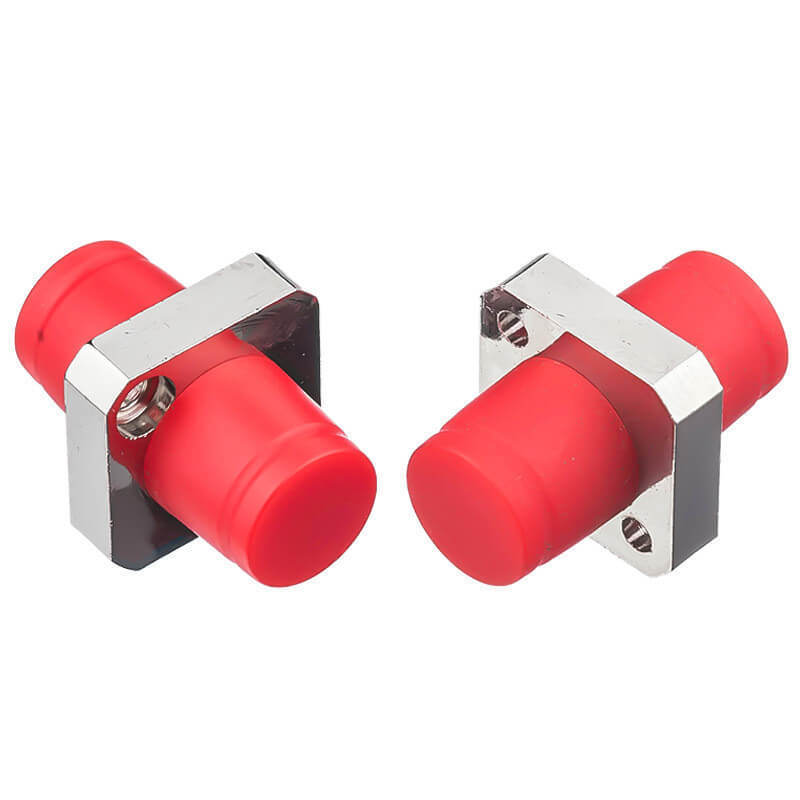

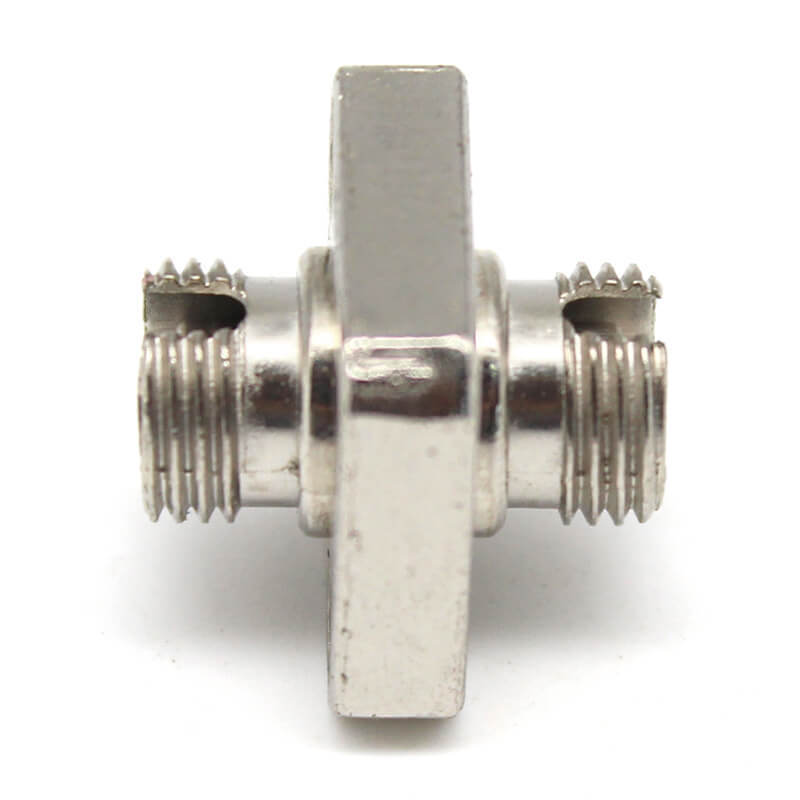

FC UPC Square Type Fiber Optic Adapter
The FC UPC Square Type Fiber Optic Adapter is a high-quality, cost-effective mounting solution featuring a solid machined brass/nickel body with female threaded connections. Engineered for precision, it is available in single-mode configurations with phosphor bronze or zirconia ceramic sleeves to enhance connector performance. Fully compliant with TIA, JIS, and IEC standards.
Specifications
Connector Information Single-Mode Multimode
Connector Type FC, SC, ST, LC, MU FC, SC, ST, LC, MU
Insertion Loss < 0.2dB < 0.2dB
Return Loss PC > 40dB
UPC > 50dB
APC > 60dB

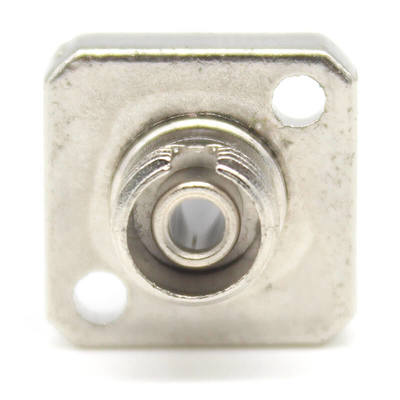

FC UPC Square Fiber Optic Adapter, <0.2dB Insertion Loss 0
